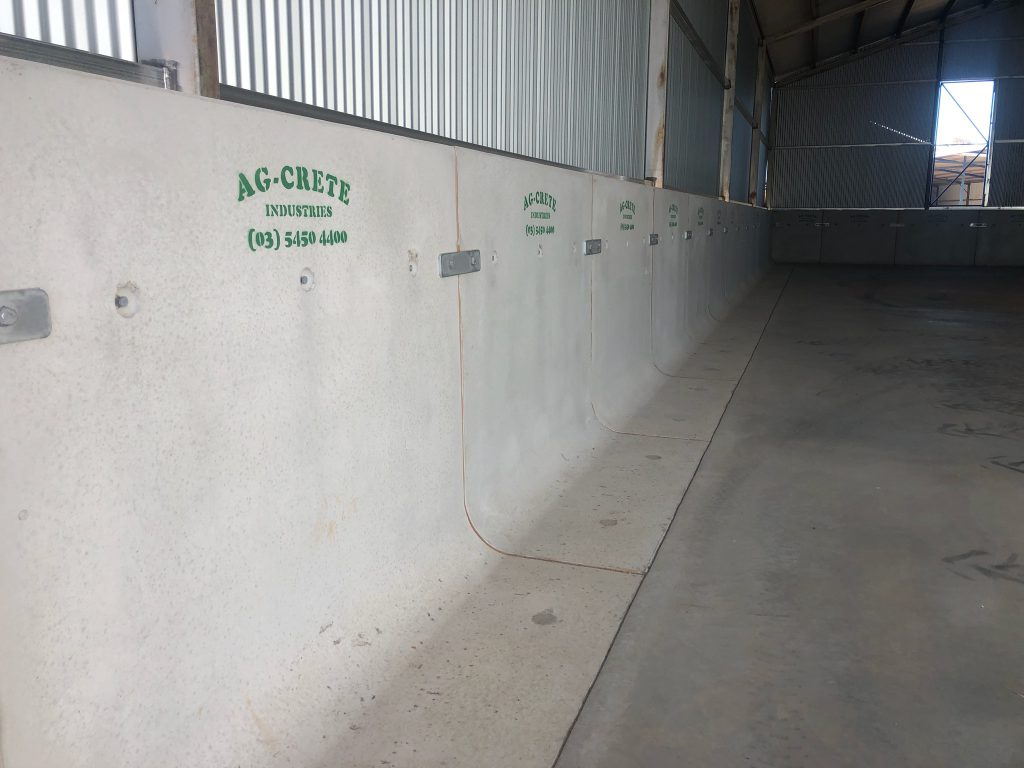

Ag-Crete’s range of L-Block retaining walls are made from heavily reinforced 40Mpa vibrated concrete, and are fully engineered for use with compacted fill. These heavy duty walls won’t deteriorate and will last for years, enabling resale of portable installations. Also available are L-Block Connection Plate and Bolts (Part no. LBCON).

Concrete L-Blocks for Retaining Walls or Bulk Storage Bunkers/Sheds/Bin

  • Heavily reinforced, durable 40 or 50Mpa vibrated concrete
  • Engineered for use as soil retaining walls^
  • Fastest retaining wall system to install – no footings or framework required
  • Connecting plates & corner brackets assist with alignment
  • Portable walls will remain a saleable asset
  • We can assist with storage area sizing, layout and bunker capacity – please ask!
  • Can be made with tarp/cover friendly curved top edge
  • Custom heights & lengths can be made to order
  • Slings, hooks and other accessories available

Also ideal for bulk storage of:

  • Grain
  • Fertiliser
  • Feed, including Silage
  • Gravel
  • Sand
  • Woodchips
  • Loading Ramp kits available
L-Block Retaining Wall Specifications
Part No. Dimensions (mm) Weight (kg)
LB1200 1200H x 2400L x 1000W 1800
LB1500 1500H x 2400L x 1000W 2020
LB1800 1800H x 2400L x 1000W 2200
LB2000 2000H x 2400L x 1000W 2350
LB3000 3000H x 2400L x 1750W 5030
LB4000LD^ 4000H x 2400L x 2000W 6000
LB4800LD^ 4800H x 2400L x 2200W 6700
RAMP1200 1200H x 3000L x 4800W 6000
LBCON L-Block Flat Connecting Plate (Galv) + 2 x M20 Bolts 4.8
LBCON-C L-Block Corner Connecting Plate (Galv) + 2 x M20 Dynabolts 4.8
LBCON-CEXTLD L-Block External Corner Connecting Bracket (Galv) + 4 x M20 Dynabolts 12.2

*Please specify any walls required for inward-facing corners, with an angled base.

^The LB4000LD & LB4800LD are only engineered for fill to 3 metres. We can make variants suitable for full height earth retaining, however they need to be engineered for the site.
